We offer monocrystalline wafers and whole ingots with diameter from 2” up to 4“ with quality suitable for epitaxial processing and high-frequency and optoelectronic applications.

Application field: LED industry, High-tech industry, MEMS microelectromechanical systems, Solar products, Active components, Integrated circuits, Telecom parts, etc.

Application field: Polycrystalline GaAs is used as a starting material for the manufacture of GaAs products (LED industry, Fiber optic communication, Microwave circuits, Solar cells application, High efficiency photovoltaic devices, etc.)

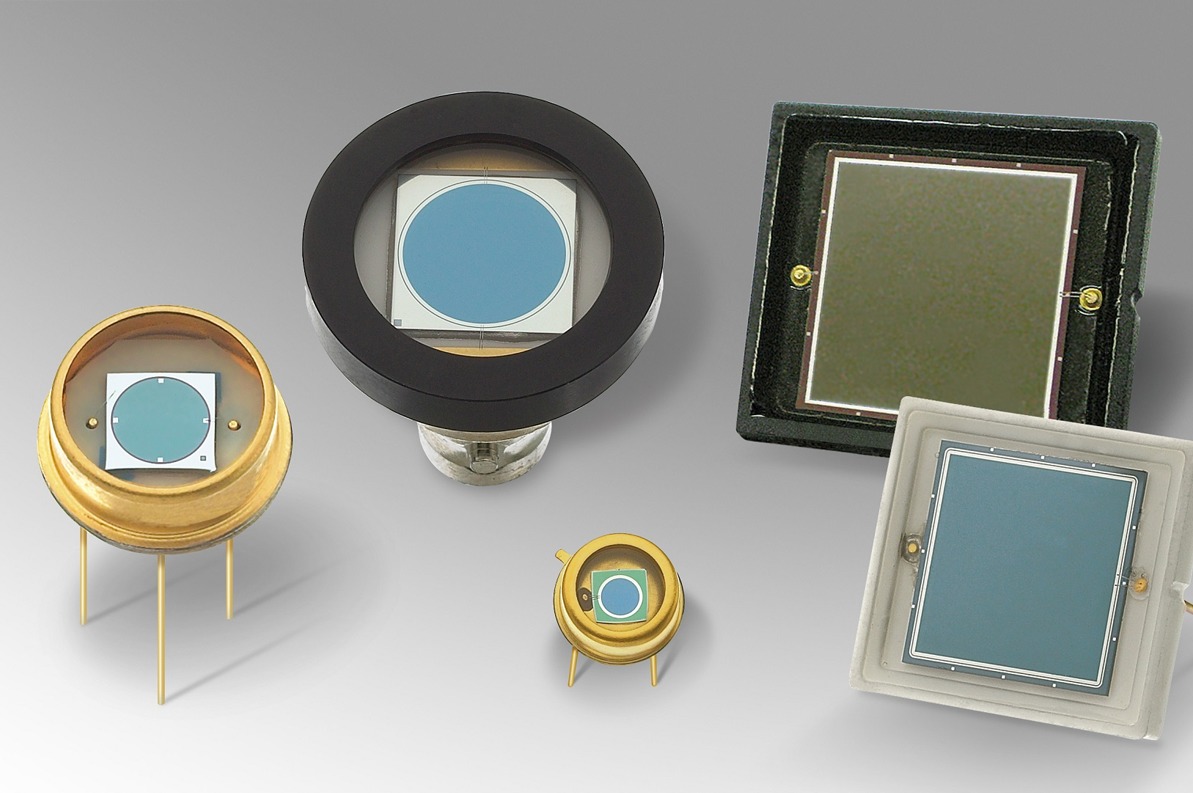

Application field: Wireless communication, PHEMT technology, Opto-electronic components (Photodiodes, Phototransistors, Photoresistors, Integrated optical circuits, Optocoupler, Laser diodes, Infrared emitting diodes), Chips, Optical fiber communication, Solar products, etc.
